Indications & Contraindications
When SpineJack is preferred over kyphoplasty
Indications
- Acute osteoporotic VCF with significant height loss (>30%) — VADs (including SpineJack) emerged specifically for cases of significant vertebral height loss where balloon kyphoplasty is inadequate
- Young patients where durable height restoration is desired — titanium implant remains in situ indefinitely; balloon kyphoplasty deflates before cement, allowing partial height recollapse
- Traumatic fractures — SpineJack indicated for compression fractures from osteoporotic, traumatic, and tumor-related causes; level range T5–L5
- Primary or secondary bone tumors — SpineJack can be used with appropriate oncologic indication alongside cementoplasty for tumor stabilization
- Cases where kyphosis correction is a priority — SpineJack provides up to 40% height gain and significant kyphotic angle reduction (mean 11–24 degrees in published series)
Contraindications
- Absolute: Retropulsed fragments causing neurologic deficit (surgery) · Active spinal infection / osteomyelitis · Uncorrectable coagulopathy · PMMA allergy
- Relative: Posterior wall disruption with canal compromise — device expansion may worsen retropulsion · Spinal instability requiring surgical fixation · Severe osteoporosis with very low bone density (device may not achieve purchase)
- OsseoFix absolute contraindication note: Retropulsed fragments and dural sac/cord compression are absolute contraindications for OsseoFix — similar caution applies to all VADs
SpineJack vs. Balloon Kyphoplasty — Key Advantages
- Durable height restoration: SpineJack remains in situ permanently — balloon deflation before cement in kyphoplasty allows partial cavity collapse; SpineJack maintains full expansion
- Mechanical (not hydraulic) expansion: Craniocaudal expansion is controlled mechanically — provides predictable force application; balloon expansion is hydraulic and less directional
- Superior height restoration and kyphosis correction: Preliminary and multicenter studies (Noriega et al, SAKOS study, Spine J 2019) show SpineJack non-inferior to kyphoplasty for pain with superior height restoration
- 81.5% pain relief at 48 hours in Noriega et al registry study (n=108); 90%+ decrease in analgesia use at 12 months
- Cost: Most expensive of the three options; requires implant-specific instrumentation
2
Pre-Procedure Checklist
Imaging, labs, implant planning, antibiotics
MRI spine with STIR. Confirm bone marrow edema = active fracture. Assess degree of height loss, fracture morphology, and kyphotic deformity. STIR hyperintensity confirms treatment benefit; no edema in chronic fracture = low response likelihood.
CT spine — mandatory for SpineJack planning. Quantify vertebral height loss (pre-procedure CT: measure anterior, central, and posterior heights). Assess posterior wall integrity. Measure pedicle width to confirm bilateral transpedicular access feasibility. Document kyphotic angle (Cobb angle) for post-procedure comparison. Post-procedure CT used to confirm height restoration and cement distribution.
Select appropriate SpineJack device size. SpineJack is available in a 5-mm diameter implant inserted via a working cannula. Select device length based on vertebral body dimensions from pre-procedure CT. Implant-specific instrumentation required — confirm availability before scheduling.
Labs. INR ≤1.5, platelets ≥50K. CBC, BMP. As an implant procedure: type and screen recommended.
Prophylactic antibiotics — REQUIRED (implant). Cefazolin 1g IV within 60 minutes of incision. Penicillin allergy: clindamycin 600 mg IV or vancomycin 15 mg/kg IV. Repeat dose if procedure >3 hours.
Anesthesia plan. General anesthesia commonly used (implant placement requires precise, controlled patient positioning and longer procedure time vs. vertebroplasty). MAC acceptable for selected patients with good pain tolerance in prone position.
Consent — implant-specific risks. Discuss: device malposition, failure to achieve adequate height restoration, cement leak around device, implant not FDA-approved at all centers (verify regulatory status), infection (implant), adjacent fracture, need for surgical removal if complication (rare).
Multidisciplinary discussion for complex cases. Per published VAD literature — tumor cases, multi-level fractures, or spinal instability warrant multidisciplinary spine team discussion prior to SpineJack placement.
3
Relevant Anatomy
Bilateral access, implant workspace, expansion mechanics
Transpedicular / Parapedicular Access
- Bilateral approach mandatory: SpineJack requires bilateral implant placement — two cannulae, two devices, simultaneous expansion
- Standard transpedicular approach (pedicle width ≥4–5 mm); parapedicular approach for narrower pedicles
- Level range: T5–L5 (VBS system); SpineJack generally applied T4–L5
- Working cannula (implant-specific trocar) advanced to posterior one-third of vertebral body — confirmed on lateral fluoroscopy
SpineJack Device Anatomy
- Titanium implant, 5 mm diameter in collapsed state; expands craniocaudally via mechanical compression of the device handle
- Expansion creates a cavity in the vertebral body within which SpineJack resides — analogous to balloon kyphoplasty cavity but implant remains
- Mechanical (not hydraulic) expansion = operator-controlled, directional craniocaudal force — compacts trabecular bone vertically
- PMMA injected through the working cannula simultaneously on both sides, filling the cavity around the in-situ implant
- Device locked in expanded position before cement injection — ensures height is maintained during cementing
Drill Path & Template
- After working cannula placed at posterior one-third of vertebral body: inner trocar replaced with guidewire, then bone drill (reamer)
- Drill advances to desired implant position — terminates just short of the anterior vertebral body cortex
- Drill removed; template device "cleans" the desired implant site and confirms dimensions
- Process repeated on contralateral side before any device insertion
- Both implant expanders inserted through working cannulae, expanded simultaneously under fluoroscopy
4
Technique
Default RadCall approach · share your own below
Supplies
Biplanar fluoroscopy (C-arm)
SpineJack implant system (Stryker) — bilateral set
Implant-specific working cannulae (5-mm device)
Guidewire (implant-specific)
Bone drill / reamer
Template device (site preparation)
SpineJack expander tool (mechanical)
Implant-specific PMMA cement
1 mL Luer-lock syringes (cement delivery)
Cefazolin 1g IV (antibiotic)
ChloraPrep
Sterile drapes
1% lidocaine
18G spinal needle (level marking)
Steps — SpineJack Vertebral Augmentation
1
Prophylactic antibiotics & positioning
Administer cefazolin 1g IV within 60 minutes prior to skin incision. Patient prone on radiolucent table. Biplanar fluoroscopy configured. Confirm correct vertebral level with marking needle. Prep and drape widely. Review pre-procedure CT for pedicle dimensions and degree of height loss.
2
Bilateral pedicle entry — working cannulae
Local anesthesia (1% lidocaine) to skin and periosteum bilaterally. Make bilateral stab incisions. Advance implant-specific working cannulae through both pedicles using the "owl eye" technique on AP fluoroscopy. Confirm on lateral: cannula tip should reach the posterior one-third of the vertebral body — not crossing the posterior wall at this stage.
▶ Bilateral pedicular access — SpineJack approach
Bilateral pedicular cannulae: same access as kyphoplasty — confirm pedicle wall integrity before advancing; SpineJack requires accurate midline trajectory.
3
Guidewire and bone drill (reamer)
Remove inner trocar from working cannula. Insert implant-specific guidewire. Over the guidewire, advance bone drill (reamer) to desired position. Drill terminates just short of the anterior vertebral body cortex — confirm on lateral fluoroscopy. Drilling creates the channel for the SpineJack implant. Remove drill.

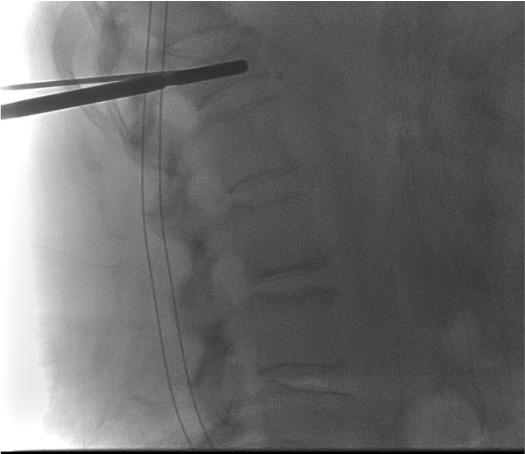

▶ Reamer creating SpineJack cavity
Reamer advancing to create SpineJack seating cavity — lateral confirms instrument tip position anterior to posterior cortex before device insertion.
4
Template device — site preparation
Insert the template device through the working cannula to "clean" the desired implant site. The template ensures appropriate dimensions and removes loose debris from the drilled channel. Confirm template position under lateral fluoroscopy. Remove template. Repeat steps 3–4 on contralateral side before device insertion.
5
Insert SpineJack expanders bilaterally
Insert SpineJack implant expanders through both working cannulae simultaneously. Confirm position under lateral and AP fluoroscopy — expanders should be in the correct craniocaudal position within the vertebral body. Both devices must be in satisfactory position before expansion begins.

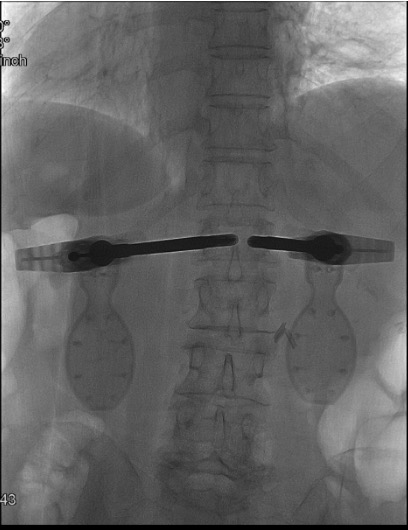

▶ SpineJack expanders — bilateral deployment
Bilateral SpineJack expanders deployed — simultaneous mechanical expansion restores vertebral height; device locks in expanded position before cement injection.
6
Simultaneous mechanical expansion — height restoration
Expand both devices simultaneously using the mechanical expander tool. Expansion is craniocaudal — the device compresses the fracture cleft open, restoring height. Monitor continuously with intermittent fluoroscopy on lateral view. STOP expansion if: end-plate breach visualized, no further height gain despite continued expansion (limit reached), or superior end-plate flattening noted. Goal: restore near-normal vertebral body height.
7
Lock devices in expanded position
Once target height achieved: lock both SpineJack devices in their expanded position using the locking mechanism (per manufacturer instructions). This is a critical step — the device must be locked before cement injection to prevent height recollapse. Remove expander tool; working cannulae and locked devices remain in situ.
8
Simultaneous PMMA cement injection
Mix implant-specific PMMA cement to paste consistency. Inject cement simultaneously on both sides through the working cannulae under continuous biplanar fluoroscopy. Cement fills the cavity created by the SpineJack devices and around the implants. STOP immediately at any sign of posterior leak, foraminal filling, or venous runoff. Standard volumes per level; fill confirmed by AP and lateral fluoroscopy.
9
Cannula removal & final imaging
Once cement polymerizes (1–2 min): remove working cannulae. SpineJack implants remain permanently in situ. Apply pressure at skin entry sites. Post-procedure AP control projection to confirm implant positioning and cement distribution. Post-procedure CT recommended to confirm height restoration, implant position, and exclude canal encroachment.
▶ Post-SpineJack — cement fill and height restoration
Final fluoroscopy: SpineJack devices with surrounding PMMA cement — confirm vertebral height restoration and absence of cement extravasation.
Vertebral Body Stenting (VBS) System — Alternative VAD
- VBS (DePuy Synthes): Expandable titanium stent deployed using the same balloon as conventional kyphoplasty — stent remains expanded in place after balloon removal (unlike conventional kyphoplasty where only cement remains)
- Bipedicular approach; suitable for T5–L5 compression fractures
- After balloon inflation and stent expansion: balloon is removed but stent stays — PMMA injected through same cannula into stent cavity
- Evidence shows greater vertebral height reduction after VBS vs. standard kyphoplasty (stent holds height after balloon removal)
- Significant pain reduction and height restoration maintained at 12 months in published series
- Mechanism: Hydraulic (balloon-based) vs. SpineJack mechanical — both leave permanent implant; different engineering approach
